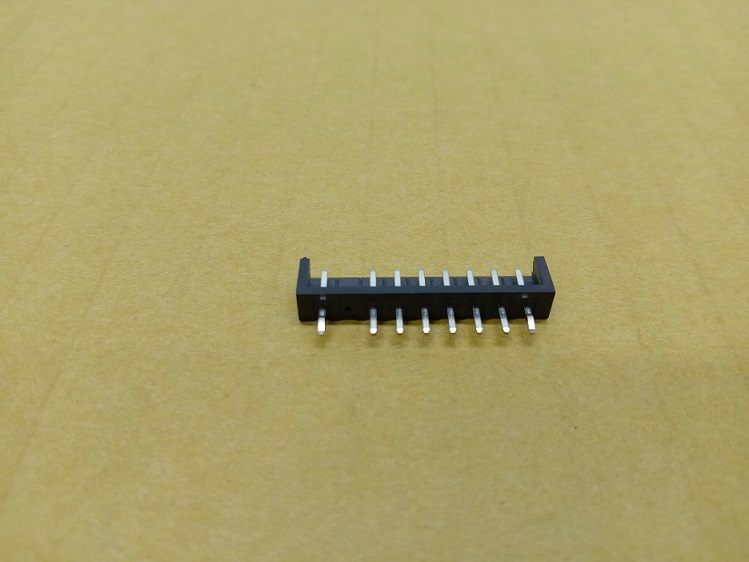

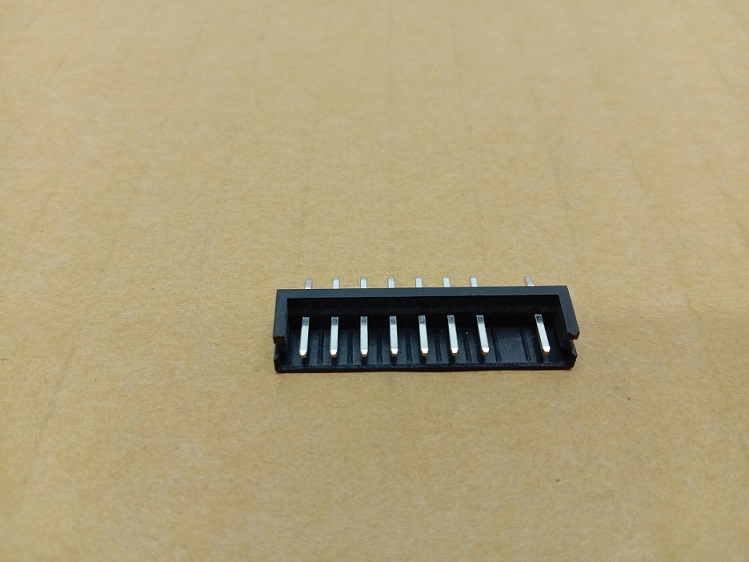

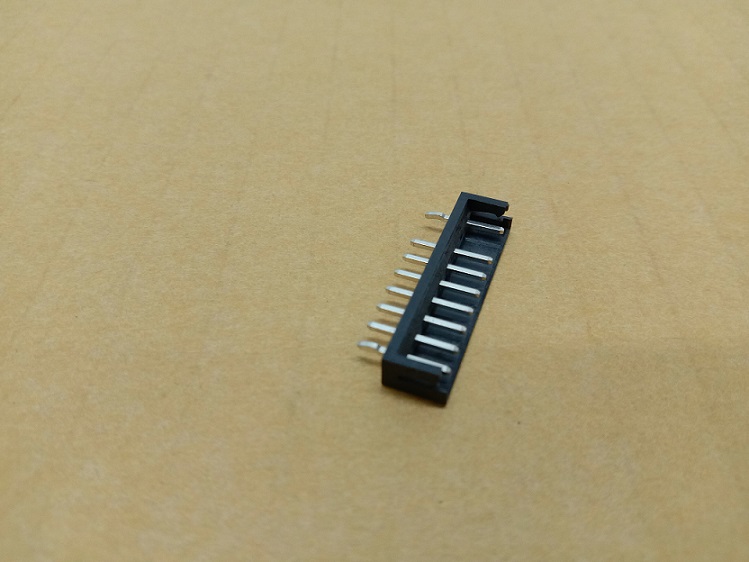

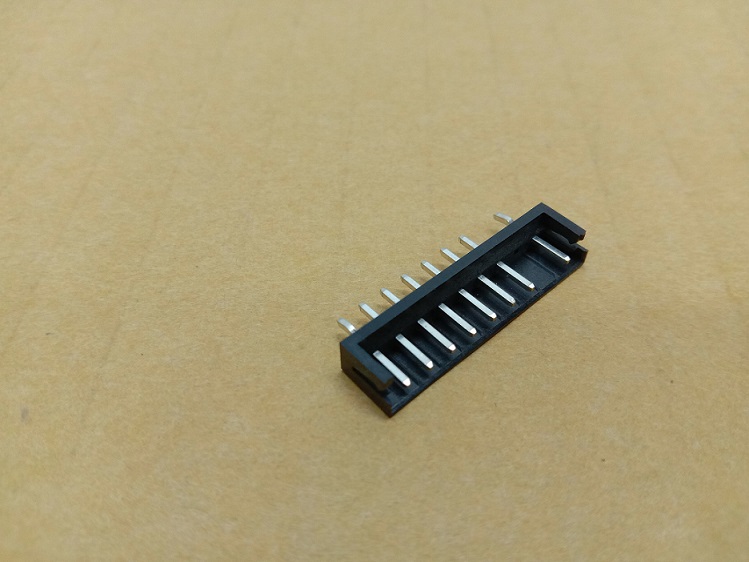

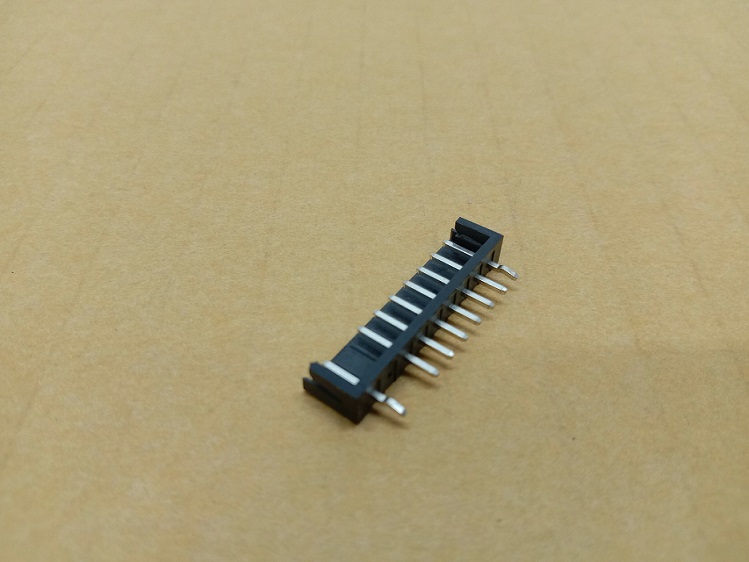

ITEM NAME : CONNECTOR PART NO : B8(9)B-EH-K SPECIFICATIONS No.of Ways : 2-12 & 16 Voltage Rating : 250V AC,DC Current Rating : 7A AC,DC Contact Resistance : 10mO max Insulation Resistance : 1000MO min Dielectric Withstanding : 1500V AC/minute Temperature Range : -25°C to +85°C Applicable PC board Thickness : 1.6mm Crimp Terminal Wire Size : 18-22 AWG Insulation O.D : 2.80mm max Contact Retention for Wafer : 2.5kg min MATERIAL & FINISH Crimp Contact : Copper Alloy, Tin/Gold Plated Square Pin : Brass, Tin/Gold Plated Insulator : Nylon CONDITION : NEW QUANTITY : 292 PCS
