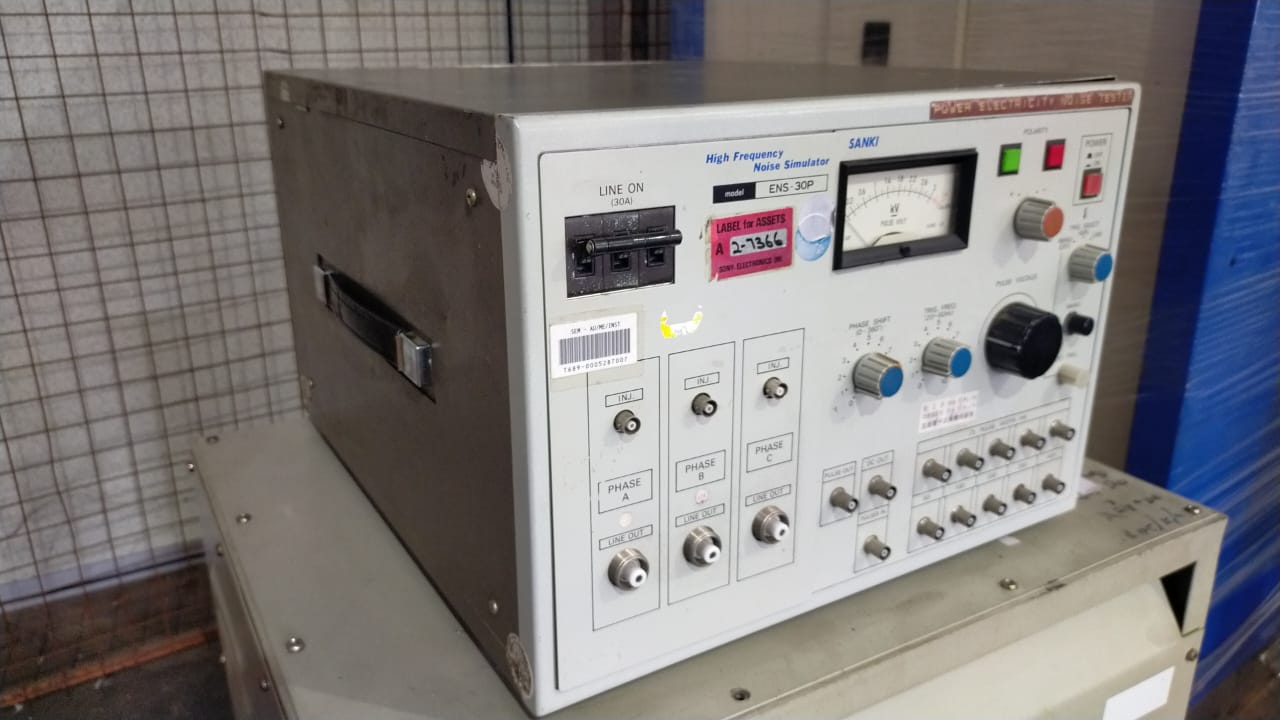

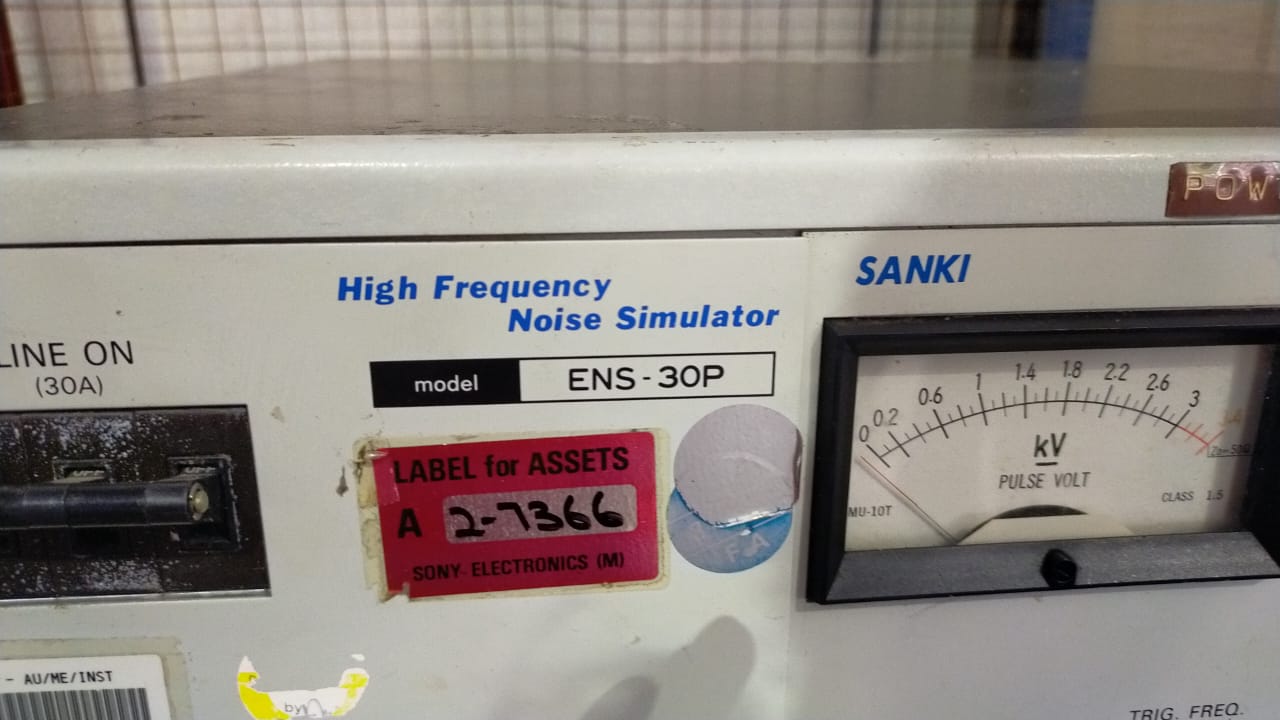

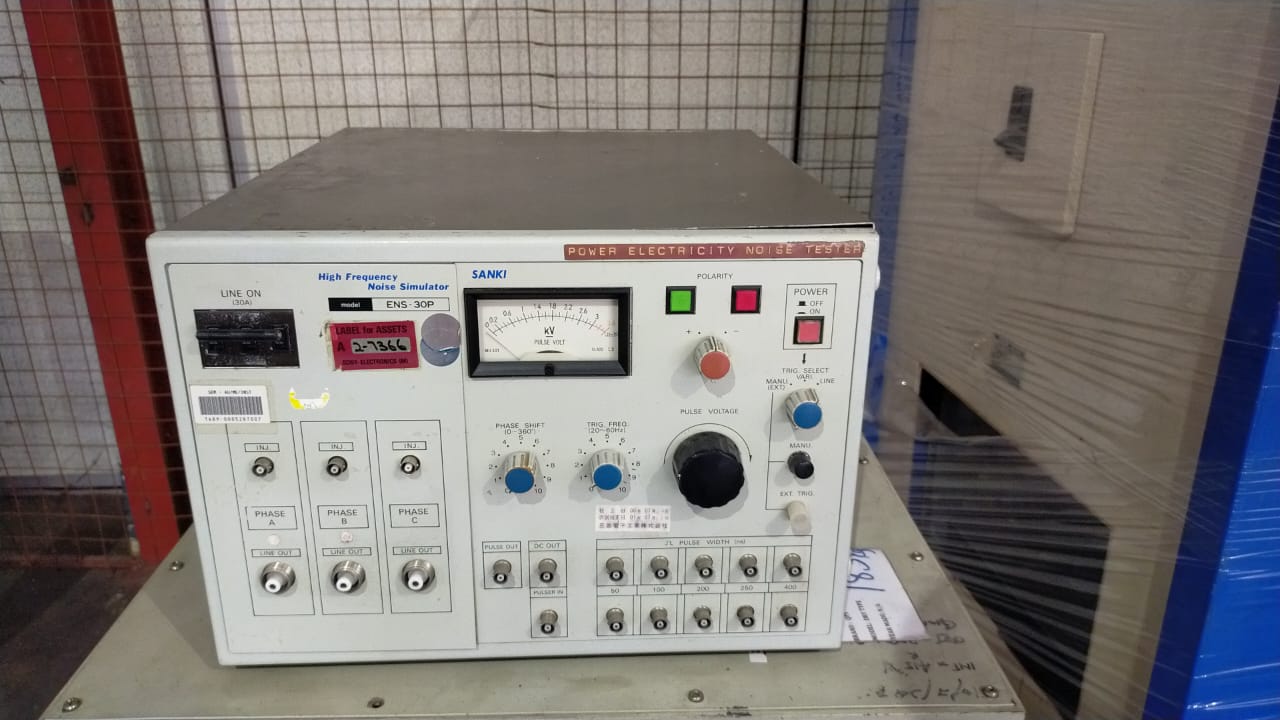

BRAND: SANKI Frequency Noise Simulator.Impulse width: Square impulse 50ns~1000ns (50ns/step) Output impulse voltage: 0~200V, 0~2000V(Two ranges) Inner impedance of generator: 50? Pulse polarity: Positive or negative Rise time: 1ns(50?) Operation mode: Manual Single External trig: TTL Level(MAX) Internal trig Adjustable Synchronous trig versus power frequency: 50 or 60Hz Impulse injection phase angle: 0~360
