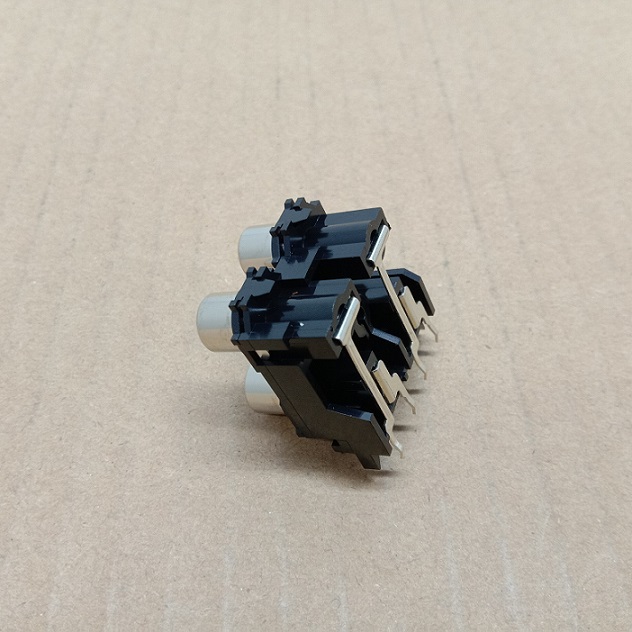

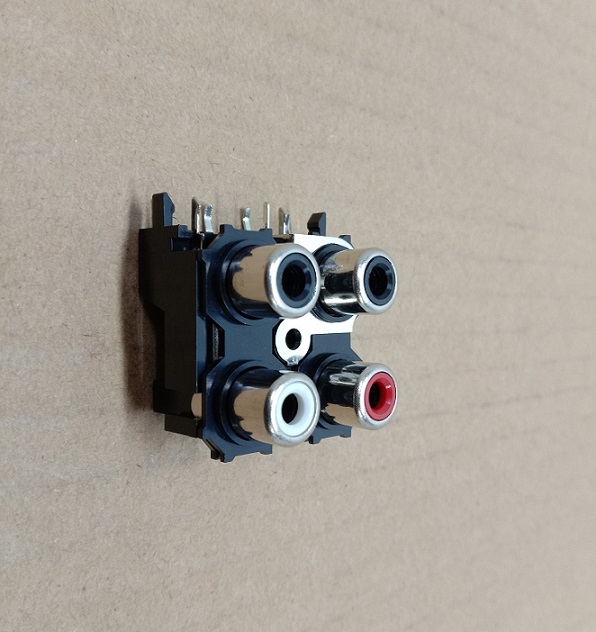

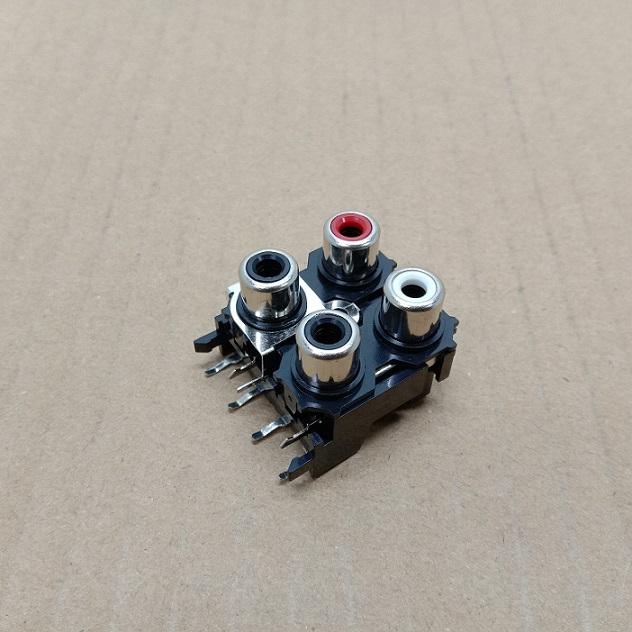

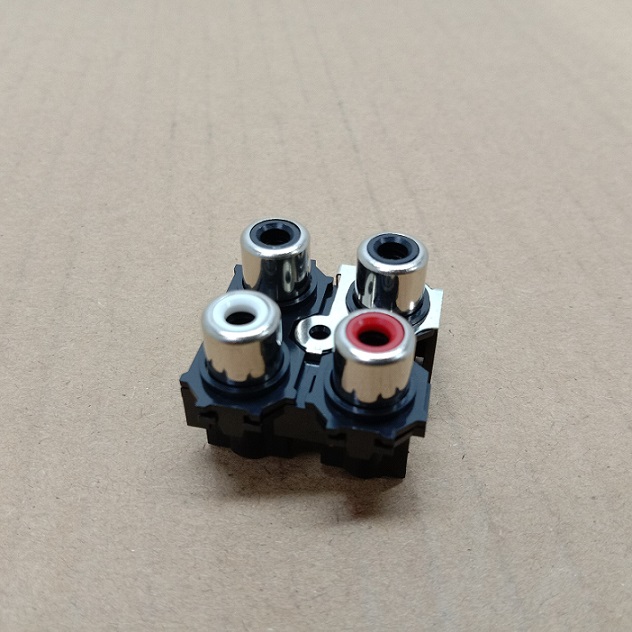

ITEM NAME : 4-pole RCA Connector PART NO : 184354611 Key Specifications / Special Features : # Standard atmospheric condition # Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests as follows # Ambient temperature: 5 to 35 oC # Relative humidity: 45 to 85% # Air pressure: 85 to 106kPa # If there is any doubt about the results, measurements shall bemade within the following limits # Ambient temperature: 20 ± 1 degree Celsius # Relative humidity: 60 to 70% # Air pressure: 86 to 106kPa # Operating temperature range: -25 to 60° # Humidity range: 85% RH maximum Electrical characteristics : # Rated voltage/rated current: 34V DC/2A # Insulation resistance: 100M Ohms minimum # Contact resistance: 30m Ohms maximum Mechanical characteristics : Operating force : # Insertion force: 29.4N (3kgf) # Withdrawal force: 0.98 to 29.4N maximum (0.1 to 3.0kgf) # Terminal strength/loosen strength of contact/strength oftapping part: without cracks or excessive looseness to theterminal, but deformation of terminal is authorized Characteristicsshall be satisfied QUANTITY : 672 PCS CONDITION : NEW
