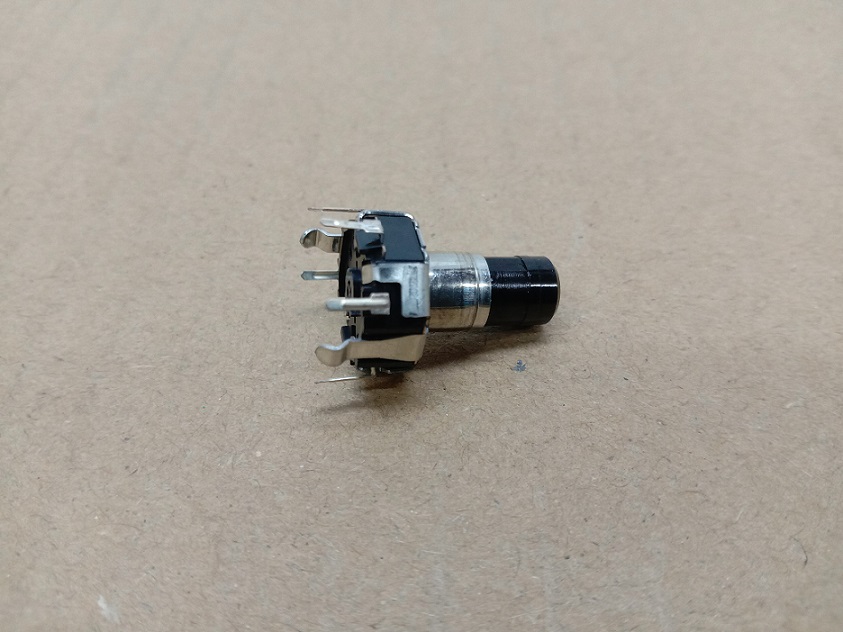

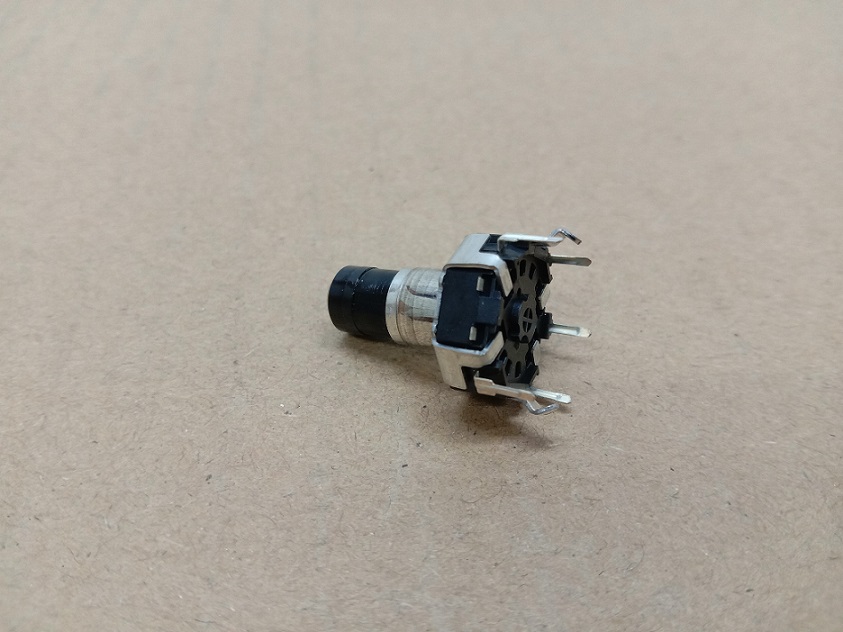

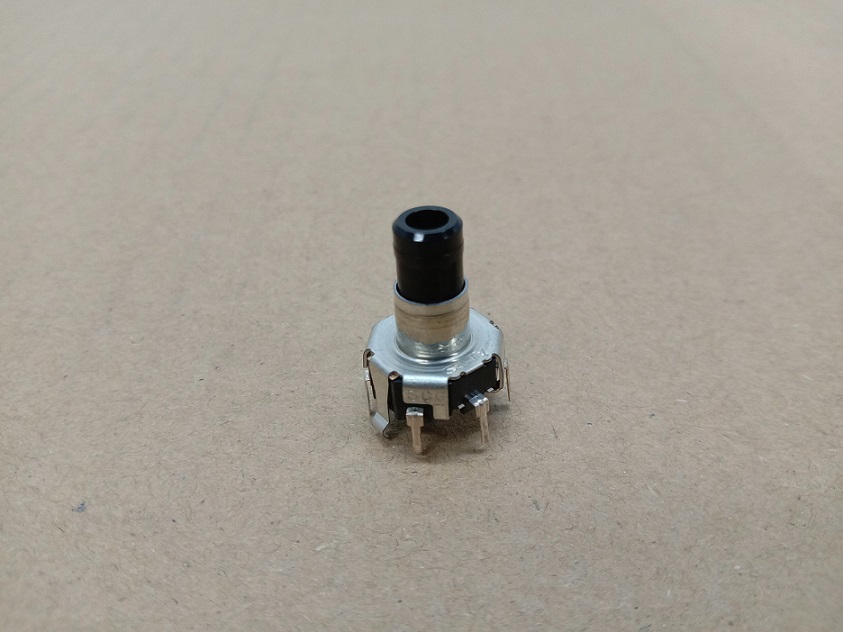

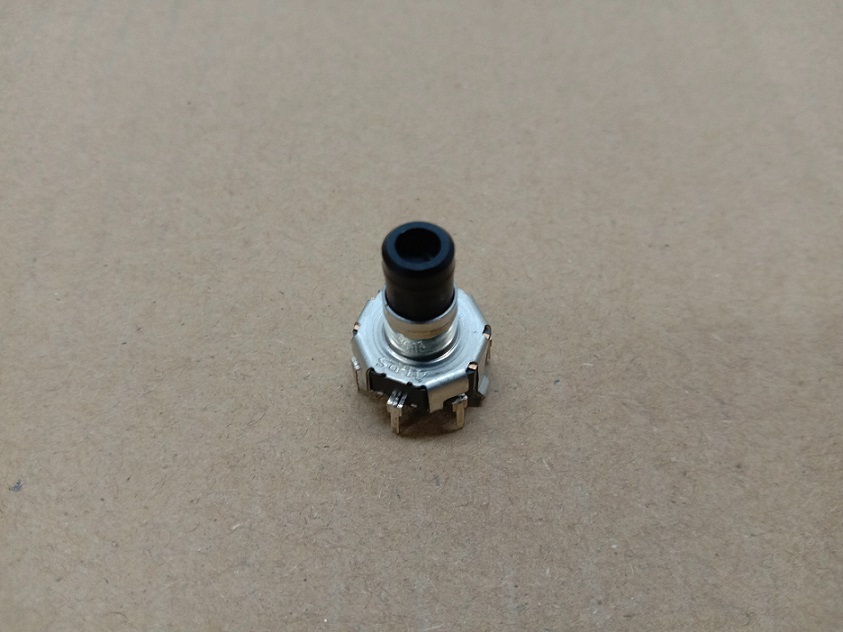

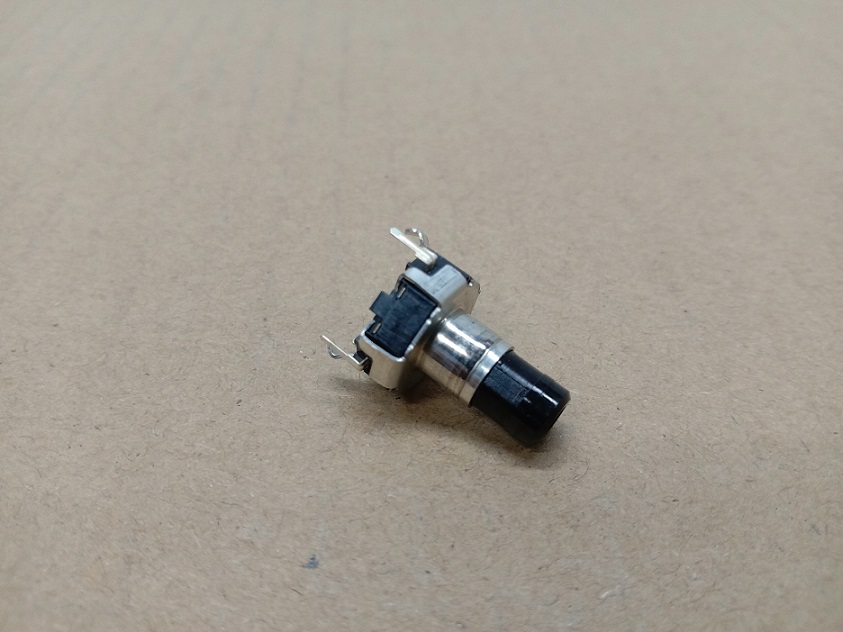

ITEM NAME : ROTARY SWITCH PART NO : 1-227-452-11 DESCRIPTION : 17mm 1 pole 8-position temperature control rotary switch. 1. Mechanical characteristics: 1.1 Operation torque: 300 ±200gf/cm 1.2 Stopper strength: 5kgf.cm 1.3 Terminal strength: static force of l000gf being applied in one direction on the tip of the terminal for l minute Terminal may be deformed but shall not sustain any problem as deviation and breaking of terminal and breaking of insulation material 1.4 Changeover angle: 30, ±3° 1.5 Bushing mount strength: 5kgf/cm min 2. Electrical characteristics: 2.1 Power rating: 0.3A, 16V DC 2.2 Contact-resistance: 50MO max 2.3 Insulation-resistance: 100MO min, at 500V DC 2.4 Dielectric test: units shall be designed to withstand 500V AC between resistance elements and case for a period of one minute without damage or arcing 3. Other : 3.1 Operating temperature range: -10 to +70°C 3.2 Storage temperature range: -20 to +80°C QUANTITY : 1286 PCS CONDITION : NEW
